Custom Made to Order
Welded Fixed

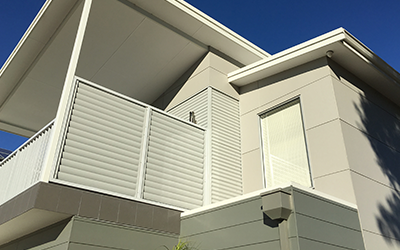

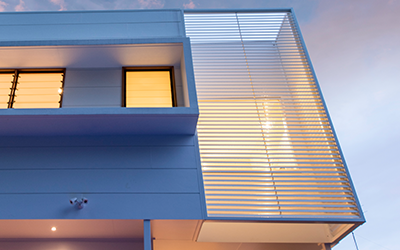

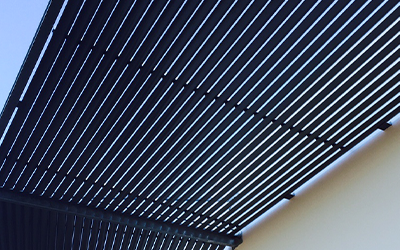

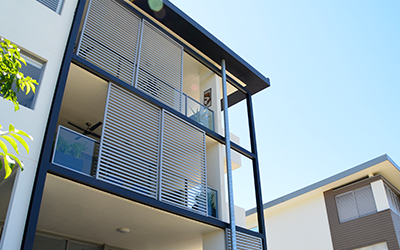

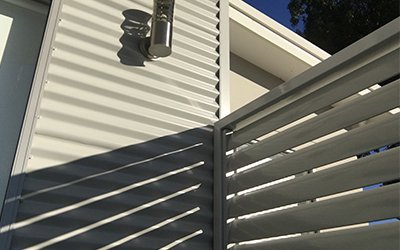

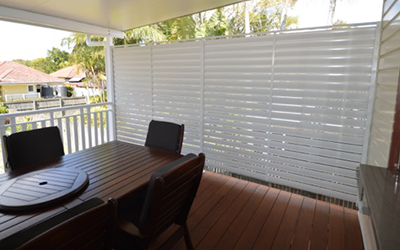

Our Louvred Aluminium Welded Slat System is the perfect way to create privacy and security for your property while adding unique architectural style. Our Welded Louvred Slats are manufactured from 100 x 20mm Elliptical 6063 T6 Aluminium Slats typically welded to 50 x 25mm stiles using Interpon Powder Coating for superior strength and corrosion resistance.
Downloads
Please find useful information & downloads about our Welded Fixed Louvred Slats below:
| Spec Sheet | View PDF |
|---|
Vertical Welded Louvred Slat Specifications
| System | Frame & Rail | Slat Sizes | Overlap | Weld Details |
|---|---|---|---|---|
| Panels | 50 x 25 x 1.8mm Screwflute Rails | 65 x 16mm Slats @ 70° angle or 100 x 20 x 1.8mm Elliptical Slats @ 75° angle | 1-2mm Approx slat overlap | Routered & Welded into panel sides |
| Swing Gates | 50 x 50 x 3mm Frame Options | 65 x 16mm Slats @ 70° angle or 100 x 20 x 1.8mm Elliptical Slats @ 75° angle | 1-2mm Approx slat overlap | Routered & Welded into gate sides |

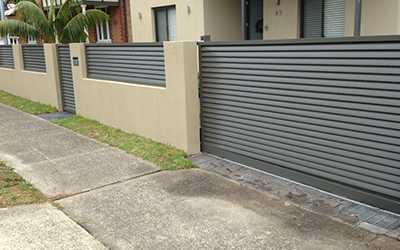

| Sliding Gates | 50 x 50 x 3mm Frame + 50 x 100 x 3mm Bottom Rail | 65 x 16mm Slats @ 70° angle or 100 x 20 x 1.8mm Elliptical Slats @ 75° angle | 1-2mm Approx slat overlap | Routered & Welded into gate sides |
