12mm Toughened Glass Panels

GP12

Our Grade A toughened safety glass panels are stamped with the Australian Standards logo for your piece of mind. All toughened glass panels & gates supplied by Oxworks comply with AS2208 with test certificates available for your certifier if required.

Your Location

Enter your location for delivery and availability

Size *

from $22.00 Inc GST

Qty:

Description

Product Overview

Features and Benefits

12mm Toughened Safety Glass
Fully Compliant to AS1926.1 (2012) Australian Pool Safety Standards
Polished all edges
Safety Tip Corners

Specifications

Product Specifications

Material	Toughened Safety Glass
Glass Thickness	12mm
Width	100mm - 2000mm
Height	1200mm
Weight	4kg - 72kg
Glass Edge Finish	Flat Polished
Glass Corner Finish	Safety Tipped
Compliance	AS2208 (1996) - Safety Glazing Materials in Buildings & AS1926.1 (2012) Australian Pool Safety Standards
Warranty	10 years - Conditions Apply

Resources

Product Downloads

Product Brochure	Download
Catalogue Extract	Download
Site Plan Guide	Download
Specification Sheet	Download

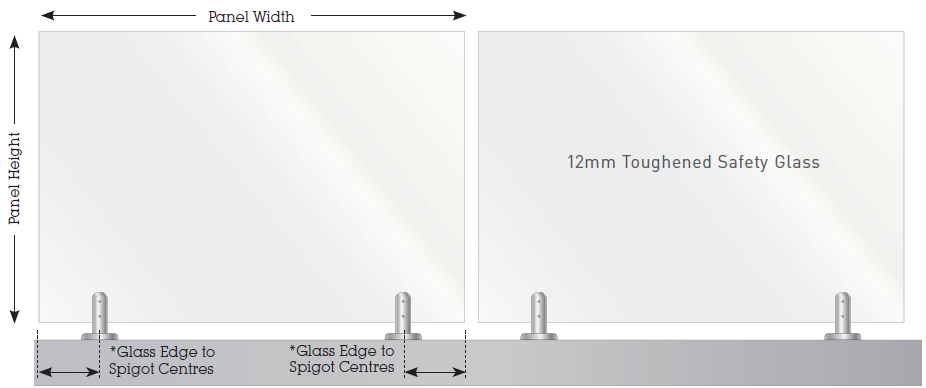

12mm Glass Spigot Spacing Guide:

CODE	GLASS THICKNESS	PANEL WIDTH	PANEL HEIGHT	PANEL WEIGHT	GLASS EDGE TO SPIGOT CENTRES
FG0100	12mm	100mm	1200mm	4kg	N/A
FG0150	12mm	150mm	1200mm	6kg	N/A
FG0200	12mm	200mm	1200mm	8kg	50mm*
FG0250	12mm	250mm	1200mm	10kg	50mm*
FG0300	12mm	300mm	1200mm	11kg	50mm*
FG0350	12mm	350mm	1200mm	13kg	50mm*
FG0400	12mm	400mm	1200mm	15kg	100mm*
FG0450	12mm	450mm	1200mm	16kg	100mm*
FG0500	12mm	500mm	1200mm	18kg	100mm*
FG0550	12mm	550mm	1200mm	20kg	100mm*
FG0600	12mm	600mm	1200mm	22kg	150mm*
FG0650	12mm	650mm	1200mm	23kg	150mm*
FG0700	12mm	700mm	1200mm	25kg	150mm*
FG0750	12mm	750mm	1200mm	27kg	150mm*
FG0800	12mm	800mm	1200mm	29kg	150mm*
FG0850	12mm	850mm	1200mm	30kg	150mm*
FG0900	12mm	900mm	1200mm	32kg	150mm*
FG0950	12mm	950mm	1200mm	34kg	150mm*
FG1000	12mm	1000mm	1200mm	36kg	150mm*
FG1050	12mm	1050mm	1200mm	38kg	150mm*
FG1100	12mm	1100mm	1200mm	40kg	200mm*
FG1150	12mm	1150mm	1200mm	42kg	200mm*
FG1200	12mm	1200mm	1200mm	43kg	200mm*
FG1250	12mm	1250mm	1200mm	45kg	200mm*
FG1300	12mm	1300mm	1200mm	47kg	200mm*
FG1350	12mm	1350mm	1200mm	49kg	200mm*
FG1400	12mm	1400mm	1200mm	50kg	200mm*
FG1450	12mm	1450mm	1200mm	53kg	250mm*
FG1500	12mm	1500mm	1200mm	54kg	250mm*
FG1550	12mm	1550mm	1200mm	56kg	250mm*
FG1600	12mm	1600mm	1200mm	58kg	250mm*
FG1650	12mm	1650mm	1200mm	60kg	250mm*
FG1700	12mm	1700mm	1200mm	61kg	250mm*
FG1750	12mm	1750mm	1200mm	63kg	250mm*
FG1800	12mm	1800mm	1200mm	65kg	250mm*
FG1850	12mm	1850mm	1200mm	67kg	250mm*
FG1900	12mm	1900mm	1200mm	68kg	300mm*
FG1950	12mm	1950mm	1200mm	70kg	300mm*
FG2000	12mm	2000mm	1200mm	72kg	300mm*

* These are recommended Spigots positionings and meant as a guide only
